FA-118T

Epson Crystal Unit
Frequency Range: 24.0000 to 54.0000MHz
Dimensions: 1.6 x 1.2 mm (1602)
ROHS STATUS: Compliant
Applications: Mobile phone, Bluetooth, W-LAN
ISM band radio, Clock for MPU
Sample Download PDF
Parameter Table

Item Symbol Specifications Condition/Remarks
For RF Reference For Clock
Nominal frequency range f_nom 24.000MHz to 54.000MHz Fundamental Please contact us for inquiries regarding the available frequencies.
Storage temperature range T_stg -40°C to +125°C Store as bare product.
Operating temperature range T_use -40°C to +85°C
Level of drive DL 100µW Max. 200µW Max. Recommended: 1µW to 100µW
Frequency tolerance (standard) f_tol ±10 × 10-6 *1 ±30 × 10-6 +25°C For the out of standard specifications, please contact us for inquiries.
Frequency versus temperature characteristics (standard) f_tem ±12 × 10-6 *1 ±30 × 10-6 -20°C to +75°C For the out of standard specifications, please contact us for inquiries.
Load capacitance CL 6pF to ∞ Please specify.
Motional resistance (ESR) R1 As per below table -20°C to +75°C
Frequency aging f_age ±1 × 10-6 / year Max. ±5 × 10-6 / year Max. +25°C, First year




Motional resistance (ESR)


Frequency Motional resistance
24.0MHz ≤ f_nom < 32.0MHz 200Ω Max.
32.0MHz ≤ f_nom < 36.0MHz 100Ω Max.
36.0MHz ≤ f_nom ≤ 54.0MHz 80Ω Max.

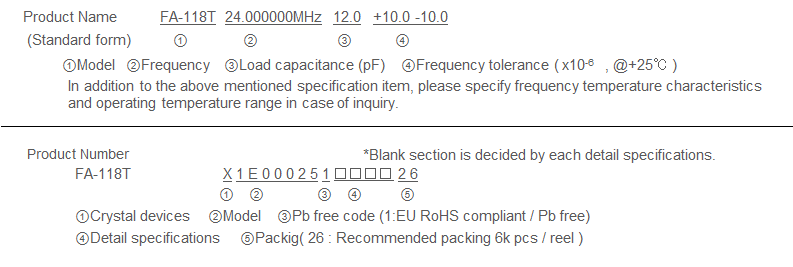

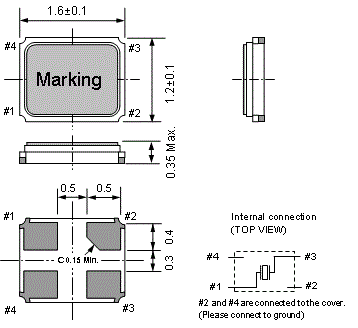

External dimensions




(Unit: mm)

#2 and #4 are connected to the cover (Please connect to ground)

Footprint (Recommended)



(Unit: mm)
