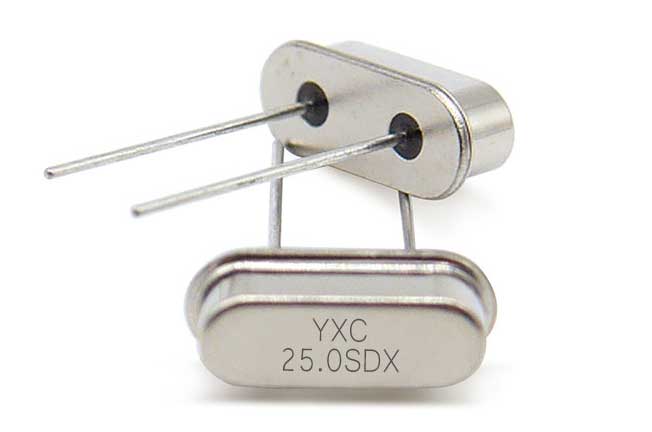

HC-49S

Frequency Range: 3.2768MHz to 64MHz
Hot-sale frequencies: 4MHz, 8MHz, 11.0592MHz
Package: 200 pieces/Bag
Promise: Lifetime warranty and technical support
Support: Free samples available
Rohs Status: Compliant
Sample Download PDF
Parameter Table

Item / Type HC-49S
Nominal Frequency Range 3.2768 to 64 MHz
Vibration Mode AT Fundamental
Load Capacitance 12pF, 20pF, or specify
Frequency Tolerance (at 25 ℃) ±10 ppm, ± 20 ppm, or specify
Frequency Versus Temperature Characteristics ± 20 ppm, or specify
Operating Temperature - 20 ~ + 70 ℃ , - 40 ~ + 85 ℃, or specify
Storage Temperature -40 ~ +85 ℃, or specify
Shunt Capacitance 7 pF Max.
Level of Drive 1 ~ 500 μW (100μW typical)
Frequency Aging (at 25 ℃) ± 3 ppm / year Max.


Part Number Guide             X49SD12MSD2SC

Quartz Crystal Resonator Dimensions Frequency
(Hz)		 Load Capacitance
(pF)		 Frequency Stability
(ppm)		 Pin Material Operating Temp
X 49SD 12M S D 2 S C


Equivalent Series Resistance(ESR)


Fundamental 3rd Overtone
3.2768 to 4 MHz 180 Ω Max. 20 to 25 MHz 100 Ω Max.
4 to 5 MHz 120 Ω Max. 25 to 64 MHz 80 Ω Max.
5 to 6 MHz 100 Ω Max.
6 to 7 MHz 80 Ω Max.
7 to 10 MHz 60 Ω Max.
10 to 27 MHz 40 Ω Max.

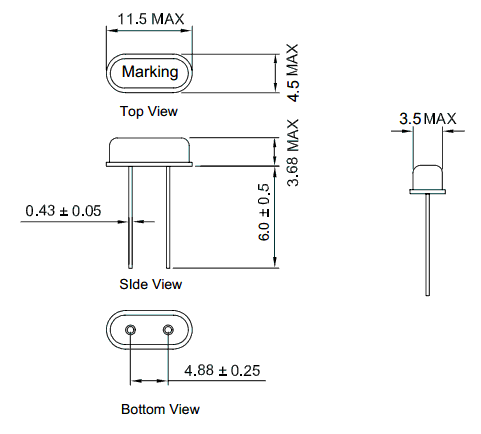

External dimensions



(Unit: mm)
