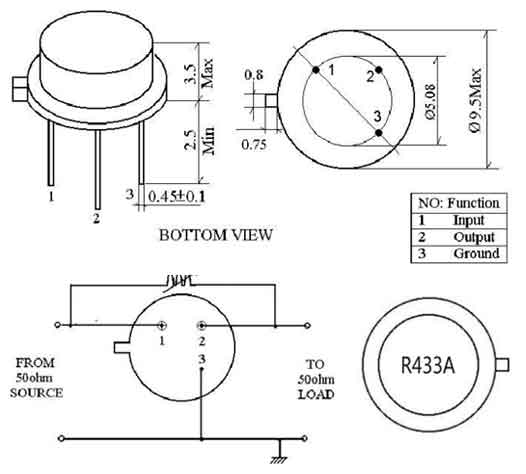

R433 TO39

Fixed Frequencies: 433.92MHz
Package: 500 pieces/Bag
Support: Free samples available
ROHS STATUS: Compliant
Applications: Consumer electroincs,communications

Sample Download PDF

Parameter Table

Item		Unites	Minimum	Typical	Minimum
Center Frequency		MHz	433.845	433.920	433.995
Insertion Loss		dB		1.6	2.2
Quality Factor	Unload Q		8300	12000
Quality Factor	50Ω Loaded Q		850	1500
Temperature Stability	Turnover Temperature	℃	10	25	40
Temperature Stability	Freq.temp.Coefficient	ppm/ ℃²		0.032
Frequency Aging		ppm/ yr		＜±10
DC. Insulation Resistance		MΩ	1.0
RF Equivalent RLC Model	Motional Resistance R1	Ω		18	26
	Motional Inductance L1	μ H		79.82
	Motional Capacitance C1	fF		1.685
Transducer Static ＜±10 Capacitance C0		pF		2.3
