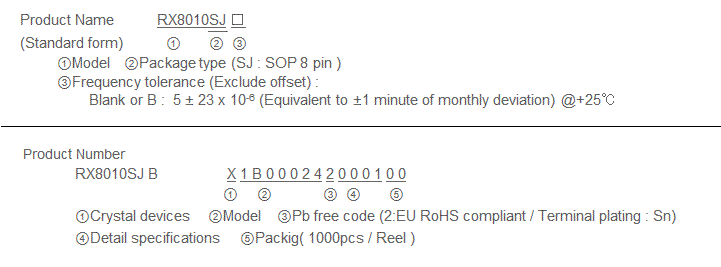

Item | Symbol | Condition | Min. | Typ. | Max. | Unit |
---|---|---|---|---|---|---|
Power voltage | VDD | - | 1.6 | 3.0 | 5.5 | V |
Clock voltage | VCLK | - | VLOW | 3.0 | 5.5 | V |
Operating temperature | TOPR | - | -40 | +25 | +85 | °C |
Frequency characteristics
Item | Symbol | Condition | Rating | Unit |
---|---|---|---|---|
Frequency tolerance |
Δ f/f | Ta=+25°C VDD=3.0V |
5±23 * | ×10-6 |
Oscillation Start-up time |
tSTA | Ta=+25°C VDD=1.6V~5.5V |
1Max | s |
Ta=-40°C~+85°C VDD=1.6V~5.5V |
3Max | s |
*Equivalent to ±1 minute of monthly deviation
Current consumption characteristics
Ta=-40°C to +85°C

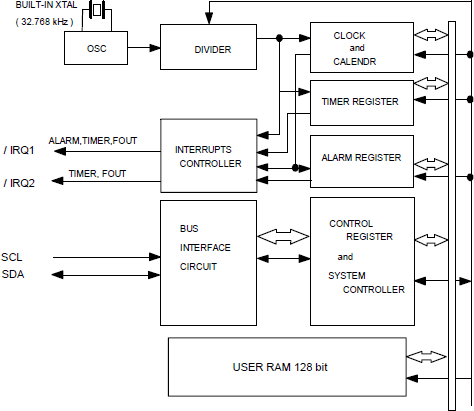

Item | Symbol | Conditions | Min. | Typ. | Max. | Unit | |
---|---|---|---|---|---|---|---|
Current Consumption | lBK | Input pins are"L" fCLK=0Hz /IRQ1.2=OFF, TSEL2="1" |
VDD=5V | - | - | 350 | nA |
VDD=3V | - | 160 | 320 | ||||
l32k | fCLK=0Hz /IRQ1:32.768kHzON, TSEL2="1" |
VDD=5V | - | 5.5 | 7.0 | µA | |
VDD=3V | - | 3.0 | 4.0 |
Signal Name | Input/ Output |
Function |
---|---|---|
SCL | Input | This is a shift clock input pin for serial data transmission. |
SDA | Bi-directional | This is the data input/output pin for serial data transfer. |
IRQ1 | Output | This pin outputs interrupt signals ("L" level) for alarm, timer, time update, and 32.768kHz. This is an N-ch open-drain output. |
/IRQ2 | Output | This pin outputs interrupt signals ("L" level) for timer and FOUT. This is a C-MOS output. |
VDD | Supply | This is a power-supply pin. |
GND | Supply | This pin is connected to a ground. |

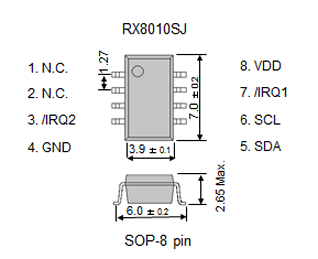

(Unit: mm)
The metal case inside of the molding compound may be exposed on the top or bottom of this product.
This purely cosmetic and does not have any effect on quality, reliability or electrical specs.
(Unit: mm)
To maintain stable operation, provide a 0.1uF by-pass capacitor
at a location as near as possible to the power source terminal of the crystal product (between Vcc - GND).
