SG-210STF

Frequency Range: 1-75MHz
Hot-sale frequencies: 12MHz, 20MHz, 27MHz
Dimensions: 2.5*2.0mm
ROHS STATUS: Compliant

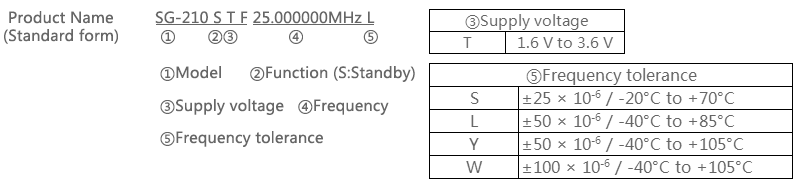

PN: SG-210STF 20.0000ML0 X1G004171002900
Applications: Wireless communication, PC and LCDM
Sample Download PDF
Parameter Table

Item Symbol SG-210STF Conditions / Remarks
Output frequency range f0 1MHz to 75MHz Please contact us about available frequencies.
Supply voltage VCC H: 1.6 V to 3.6 V
Storage temperature T_stg -40°C to +125°C Storage as single product
Operating temperature T_use  -40 °C to +85 °C
-40°C to +125°C
Frequency tolerance f_tol J: ±25 × 10-6
Current consumption ICC 1.5mA -3.0mA Max. No load condition Maximum frequency.
Disable current I_dis - OE=GND
Symmetry SYM 45 % to 55 % 50% VCClevel, L_CMOS ≦ 50 pF
Output voltage VOH VCC - 0.4V Min.
VOL 0.4V Max.
Output load condition(CMOS) L_CMOS 15 pF Max.
Input voltage VIH 80% VCC Min. OE terminal
VIL 20% VCC Min.
Start-up time t_str 3ms Max. t=0 at 90 % VCC ,+85°C
Frequency aging f_aging ±3 × 10-6 / year Max. +25°C, First year.

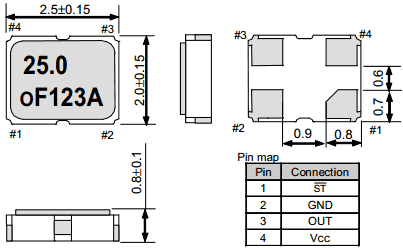

External dimensions



(Unit: mm)


Footprint (Recommended)



(Unit: mm)
