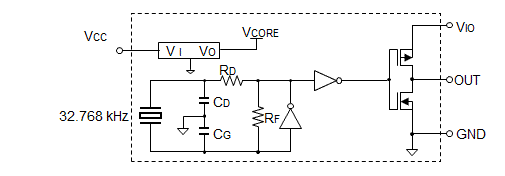

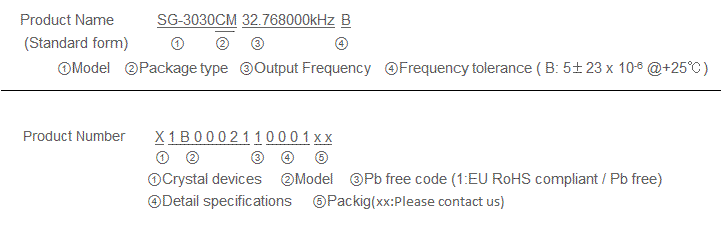

SG-3030CM

FIXED FREQUENCIES: 32.768KHz

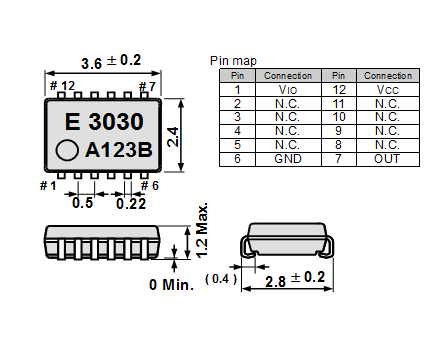

DIMENSIONS: 3.2*1.5mm
PACKAGE: 3000 pieces/Reel
PROMISE: Lifetime warranty and technical support
ROHS STATUS: Compliant

Sample Download PDF

Parameter Table

Item	Symbol	Specifications	Condition/Remarks
Output frequency range	f₀	32.768 kHz
Supply voltage	V_CC	1.5 V to 5.5 V
Interface power supply voltage	V_io	1.5 V to 5.5 V
Storage temperature	T_stg	-55 °C to +125 °C	Store as bare product
Operation temperature	T_use	-40 °C to +85 °C
Frequency tolerance	f_tol	5 ± 23 x10^-6	+25 °C , V_CC = 3.3 V
Frequency temperature coefficient	f₀ - T_C	+10 × 10^-6/ -120 × 10^-6	-20 °C to +70 °C (+25 °C is reference)
Frequency/ voltage coefficient	f₀ - V_CC	2 ×10^-6 / V Max.	+25 °C
Current consumption	l_CC	2 µA Max.	3.3 V , No load condition
Symmetry	SYM	45 % to 55 %	1/2 V_CC / (V_io) level
Output voltage	V_OH	V_io - 0.4 V Min.	l_OH = -0.4 mA
Output voltage	V_OL	0.4 V Max	l_OL = 0.4 mA
Output load condition(CMOS)	L_CMOS	15 pF Max.	CMOS load
Rise time/Fall time	t_r/t_f	200 ns Max.	CMOS load:20 % V_CC(V_io) to 80 % V_CC(V_io) level
Start-up time	t_str	1 s Max.	Time at minimum Supply voltage to be 0 s +25 °C
Frequency aging	f_aging	±5 × 10^-6 / year Max.	+25 °C , V_CC = 3.3 V , First year

Unless otherwise stated, characteristics (specifications) shown in the above table are based on the rated operating temperature and voltage condition.
