SG-3030LC

FIXED FREQUENCIES: 32.768KHz
DIMENSIONS: 3.6*2.4mm
PACKAGE: 2000 pieces/Reel
ROHS STATUS: Compliant

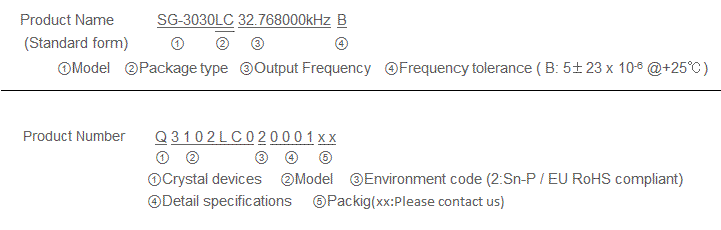

PN: X1B000211000100
Applications: Mobile phone, Tablet, Video Cams, Fitness watches
Sample Download PDF
Parameter Table

Item Symbol Specifications Condition/Remarks
Output frequency range f0 32.768 kHz
Supply voltage VCC 1.5 V to 5.5 V
Interface power supply voltage Vio 1.5 V to 5.5 V
Storage temperature T_stg -55 °C to +125 °C Store as bare product
Operation temperature T_use -40 °C to +85 °C
Frequency tolerance f_tol 5 ± 23 × 10-6 +25 °C , VCC = 3.3 V
Frequency temperature coefficient f0 - TC +10 × 10-6 / -120 × 10-6 -20 °C to +70 °C (+25 °C is reference)
Frequency/ voltage coefficient f0 - VCC 2 × 10-6 / V Max. +25 °C
Current consumption lCC 2 µA Max. 3.3 V , No load condition
Symmetry SYM 45 % to 55 % 1/2 VCC (Vio) level
Output voltage VOH Vio - 0.4 V Min. lOH = -0.4 mAV
VOL 0.4V Max. lol = 0.4mA
Output load condition(CMOS) L_CMOS 15 pF Max. CMOS load
Rise time/Fall time tr / tf 200 ns Max. CMOS load: 20 % VCC(Vio) to 80 % VCC(Vio)level
Start-up time t_str 1 s Max. Time at minimum Supply voltage to be 0 s
+25 °C(VCC = 2.0 V to 5.0 V)
Frequency aging f_aging ±5 × 10-6 / year Max. +25 °C , VCC = 3.3 V , First year

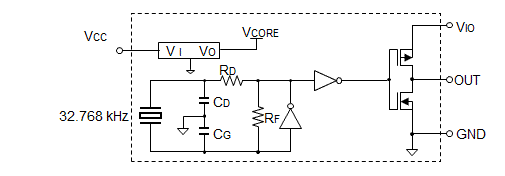

Block diagrams


*If VIO function is not used connect #1 to VCC

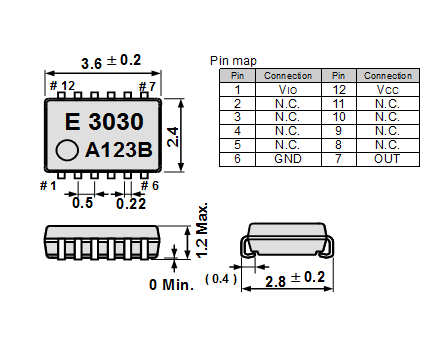

External dimension

*Stop using the glue
Any glue must never use it after soldering LC-package to a circuit board.
This product has glass on the back side of a package.When glue invasions between circuit board side and glass side,
then glass cracks by thermal expansion of glue.
In this case a crystal oscillation stops.Consider glue abolition or glue do not touch to LC-package.


(Unit: mm)

Footprint (Recommended)

To maintain stable operation, provide a 0.01 µF to 0.1 µF by-pass capacitor at a location as near as possible
to the power source terminal of the crystal product (between VCC - GND)


(Unit: mm)
