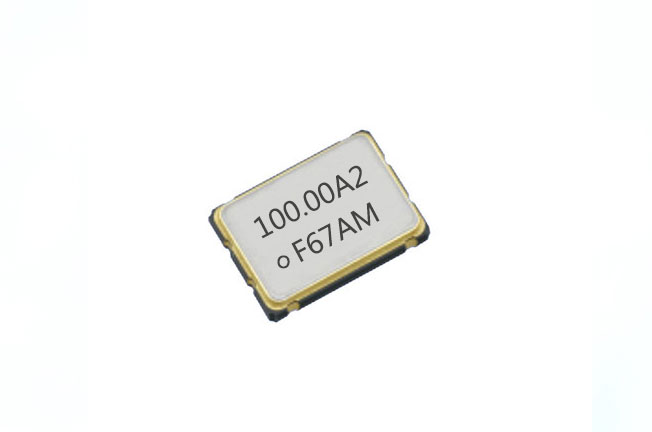

Item | Symbol | Specifications | Conditions/Remarks | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Supply voltage | VCC | 1.80 V Typ. | 2.50 V Typ. | 3.30 V Typ. | ||||||||||||
1.62 to 1.98V | 1.98 to 2.20V | 2.20 to 2.80V | 2.70 to 3.63 V | |||||||||||||
Output frequency range | f0 | 0.67 MHz to 170 MHz | ||||||||||||||
Storage temperature | T_stg | -40°C to +125°C | Storage as single product. | |||||||||||||
Operating temperature | T_use | H: -40°C to +105°C | ||||||||||||||
Frequency tolerance *1 | f_tol | J: ±50 × 10-6 | T_use= -40°C to +105°C | |||||||||||||
Current consumption | ICC | 3.2mA Max. | 3.3mA Max. | 3.4mA Max. | 3.5mA Max. | T_use=+105°C | No load f0 = 20 MHz |
|||||||||
2.7mA Typ. | 2.9mA Typ. | 3.0mA Typ. | T_use=+25°C | |||||||||||||
5.5mA Max. | 5.8mA Max. | 6.7mA Max. | 8.1mA Max. | T_use=+105°C | No load f0 = 170 MHz |
|||||||||||
4.7mA Typ. | 5.7mA Typ. | 6.8mA Typ. | T_use=+25°C | |||||||||||||
Output disable current | I_dis | 3.2mA Max. | 3.2mA Max. | 3.3mA Max. | 3.5mA Max. | OE=GND , f0 = 170 MHz | ||||||||||
Standby current | I_std | 0.9μA Max. | 1.0μA Max. | 1.5μA Max. | 2.5μA Max. | T_use=+105°C | ST = GND | |||||||||
0.3μA Typ. | 0.4μA Typ. | 0.5μA Typ. | 1.1μA Typ. | T_use= +25°C | ||||||||||||
Symmetry | SYM | 45% to 55% | 50% VCC Level | |||||||||||||
Output voltage (DC characteristics) |
VOH | 90% VCC Min. | [mA] | |||||||||||||
tr / tf | VCC | A | B | C | D | |||||||||||
Default (f0>40MHz) Fast |
IOH | -2.5 | -3.5 | -4.0 | -5.0 | |||||||||||
IOL | 2.5 | 3.5 | 4.0 | 5.0 | ||||||||||||
Default (f0≦40MHz) |
IOH | -1.5 | -2.0 | -2.5 | -3.0 | |||||||||||
VOL | 10% VCC Max. | IOL | 1.5 | 2.0 | 2.5 | 3.0 | ||||||||||
Slow | IOH | -1.0 | -1.5 | -2.0 | -2.5 | |||||||||||
IOL | 1.0 | 1.5 | 2.0 | 2.5 | ||||||||||||
A: 1.62 to 1.98 V , B: 1.98 to 2.20 V C: 2.20 to 2.80 V , D: 2.70 to 3.63 V |
||||||||||||||||
Output load condition | L_CMOS | 15pF Max. | ||||||||||||||
Input voltage | VIH | 70% VCC Min. | OE or ST | |||||||||||||
VIL | 30% VCC Max. | |||||||||||||||
Rise and Fall time | Default | tr / tf | 3.0 ns Max. | f0 > 40MHz | 20% VCC to 80% VCC L_CMOS=15pF |
|||||||||||
6.0 ns Max. | f0 ≦ 40MHz | |||||||||||||||
Fast | 3.0 ns Max. | f0=0.67to170MHz | ||||||||||||||
Slow | 10.0 ns Max. | f0=0.67to20MHz | ||||||||||||||
Disable Time | t_stp | 1 μs Max. | Measured from the time OE or ST pin crosses 30 % VCC | |||||||||||||
Enable Time | t_sta | 1 μs Max. | Measured from the time OE pin crosses 70 % VCC | |||||||||||||
Resume Time | t_res | 3 ms Max. | Measured from the time ST pin crosses 70 % VCC | |||||||||||||
Start-up time | t_str | 3 ms Max. | Measured from the time VCC reaches its rated minimum value, 1.62 V | |||||||||||||
Frequency aging | f_aging | This is included in frequency tolerance specification | +25°C, 10 years |
Pin | Name | I/O type | Function | |
---|---|---|---|---|
1 | OE | Input | Output enable | High: Specified frequency output from OUT pin Low: Out pin is low (weak pull down), only output driver is disabled. |
ST | Input | Standby | High: Specified frequency output from OUT pin Low: Out pin is low (weak pull down) Device goes to standby mode. Supply current reduces to the least as I_std. |
|
2 | GND | Power | Ground | |
3 | OUT | Output | Clock output | |
4 | VCC | Power | Power supply |

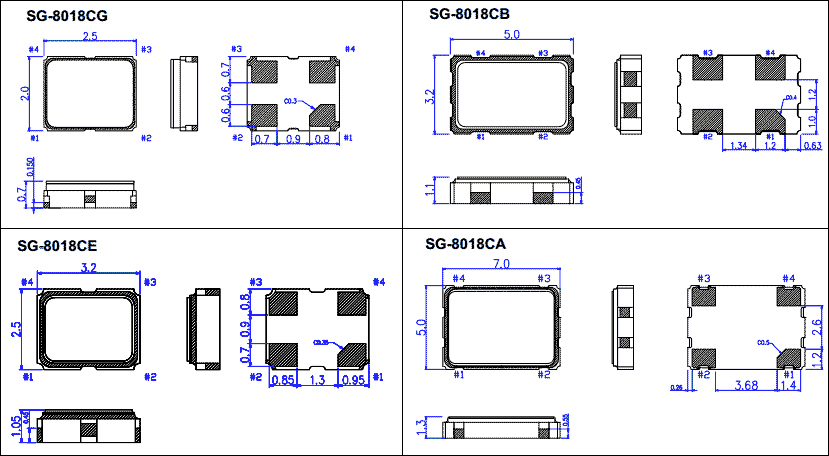

(Unit: mm)
To maintain stable operation, provide a 0.1µF by-pass capacitor at a location as near as possible to the power source terminal of the crystal product
(between VCC - GND).

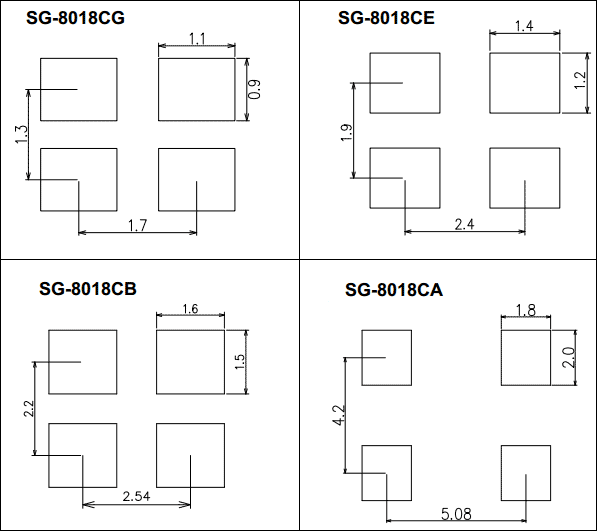

Footprint (Recommended)
