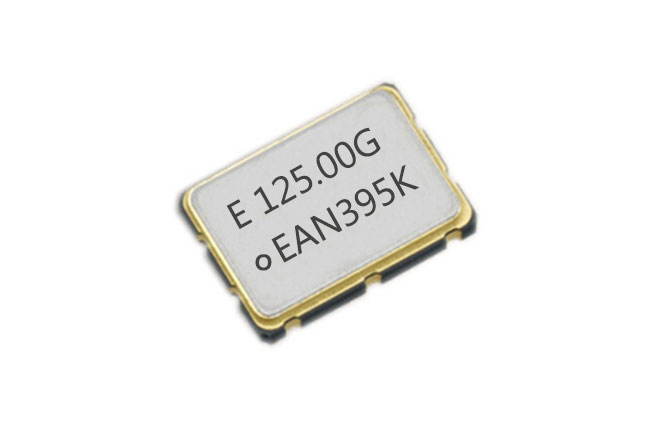

SG7050EAN

Type: Differential Crystal Oscillator
Frequency Range: 73.5MHz to 700MHz
External Dimensions: 7.0*5.0mm
Rohs Status: Compliant
Sample Download PDF
Parameter Table

Item Symbol Specifications Condition/Remarks
LV-PECL LVDS
SG3225EAN
SG5032EAN
SG7050EAN		 SG3225VAN
SG5032VAN
SG7050VAN
Output frequency range f0 73.5 MHz to 700 MHz Please contact us about available frequencies.
Supply voltage VCC K : 2.5 V to 3.3 V VCC = ±10 %
Storage temperature T_stg -40 °C to +125 °C Store as bare product.
Operating temperature T_use B : -20 °C to +70 °C
G : -40 °C to +85 °C
Frequency tolerance f_tol C : ±20 × 10-6
E : ±30 × 10-6
J : ±50 × 10-6
Current consumption ICC 65 mA Max. 30 mA Max. OE = VCC
L_ECL = 50 Ω or L_LVDS = 100 Ω
f0 = 700 MHz
Disable current I_dis 20 mA Max. OE = GND
Symmetry SYM 45 % to 55 % At outputs crossing point
Output voltage
(LV-PECL)		 VOH VCC - 1.0 V to VCC - 0.8 V - DC characteristics
VOL VCC - 1.78 V to VCC -1.62 V -
Output voltage
(LVDS)		 VOD - 250 mV to 450 mV VOD1 , VOD2 DC characteristics
dVOD - 50 mV Max. dVOD = | VOD1 - VOD2 |
VOS - 1.15 V to 1.35 V VOS1 , VOS2
dVOS - 150 mV Max. dVOS = | VOS1 - VOS2 |
Output load condition
(ECL)/(LVDS)		 L_ECL 50 Ω - Terminated to VCC - 2.0 V
L_LVDS - 100 Ω Connected between OUT to OUT
Input voltage VIH 70 % VCC Min. OE terminal
VIL 30 % VCC Max.
Rise time / Fall time tr/tf 350 ps Max. - Between 20 % and 80 % of ( VOH - VOL)
- 300 ps Max. Between 20 % and 80 % of Differential Output peak to peak voltage.
Start-up time t_str 3 ms Max. Time at minimum supply voltage to be 0 s
Phase Jitter tPJ 0.6 ps Max. *1 Offset frequency : 12 kHz to 20 MHz
Frequency aging f_aging ±5 × 10-6 / year Max. +25 °C , VCC = 2.5 V or 3.3 V
First year.


*1. f0 = 243 MHz to 250 MHz , 486 MHz to 500 MHz are 0.9ps Max.

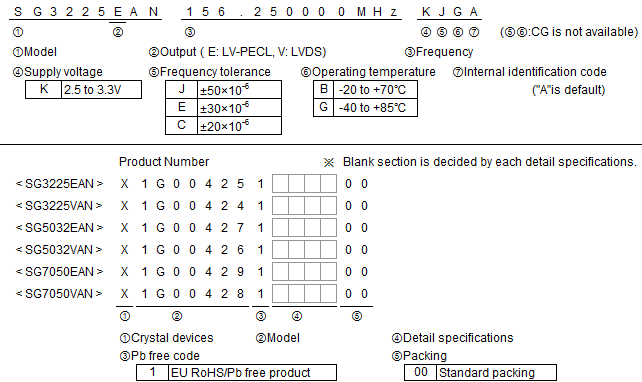

Product Name (Standard form)

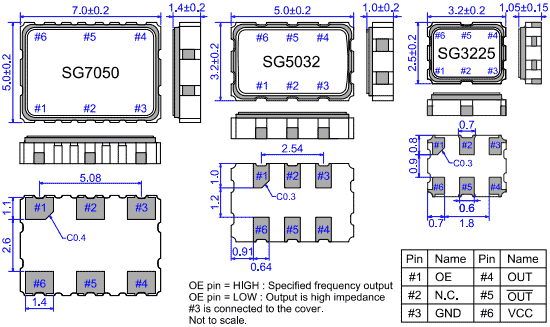

External dimensions



(Unit: mm)

Footprint (Recommended)



(Unit: mm)
To maintain stable operation, provide a 0.01 µF to 0.1 µF by-pass capacitor at a location as near as possible
to the power source terminal of the crystal product (between VCC - GND).
