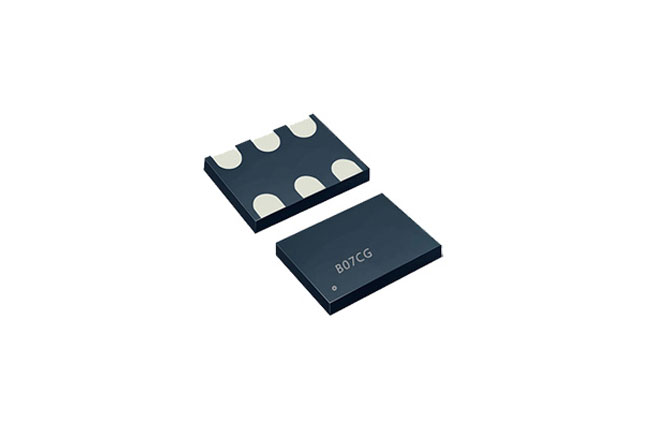

SIT9120

Frequency Range: 25 to 212.5MHz
Dimensions: 7.0 x 5.0mm/ 5.0 x 3.2mm/ 3.2 x 2.5mm
Package: 1000 pieces/Reel
Promise: Lifetime warranty and technical support
ROHS STATUS: Compliant
Applications: Telecom, networking, instrumentation, storage, servers.
Sample Download PDF
Parameter Table

Oscillator Type 31 standard frequencies
Frequency Range 25 to 212.5 MHz
Frequency Stability (ppm) ±10, ±20, ±25, ±50
Phase Jitter (rms) 0.6 ps
Output Type LVPECL, LVDS
Operating Temperature Range (°C) -20 to +70, -40 to +85
Voltage Supply (V) 2.5, 3.3, 2.25 to 3.63
Package Type (mm²) 3.2x2.5, 5.0x3.2, 7.0x5.0
Features Field programmable
Availability Production

Features


0.6 ps (typ.) integrated RMS phase jitter (12 kHz to 20 MHz)

  • Excellent jitter margin for the most stringent applications such as 1 to 10GbE


Excellent frequency stability, as low as ±10 ppm

  • Better timing margin that enhances system stability and robustness
  • Extensive programmability
  • Fixed frequency between 25 to 212.5 MHz
  • LVPECL and LVDS output signaling types
  • Supply voltage of 2.5 V and 3.3 V
  • Frequency stability from ±10 ppm and ±50 ppm
  • Customized specifications for optimal system performance
  • Cost-effective
  • Easy availability of any device specification within the operating range
