SSP-T7-F

Fixed frequency: 32.768KHz
Dimensions: 7.0 x 1.5mm (7015)
Package: 3000 pieces/Reel
Complies with EU RoHS directive
PN: Q-SPT7P0327620C5GF Q-SPT7P032762070FF
Sample Download PDF
Parameter Table

Item Symbol Specifications Conditions Note
Nominal Frequency f_nom 32.768kHz
Frequency Tolerance f_tol ±20×10-6 Please specify
 Turnover Temperature Ti +25±5℃
Parabolic Coefficient B (-0.033±10%)×10-6 / ℃2
Load Capacitance CL 7pF~12.5pF
Motional Resistance (ESR) R1 65KΩ max.
Absolute Max. Drive Level Dlmax. 1.0μW max.
Drive Level DL 0.1μW typ.
Shunt Capacitance C0 0.9pF typ.
Frequency Ageing f_age ±3×10-6 +25±3℃, First Year
Operating Temperature T_use -40~+80℃
Storage Temperature T_stg -55~+125℃ Piece part basis

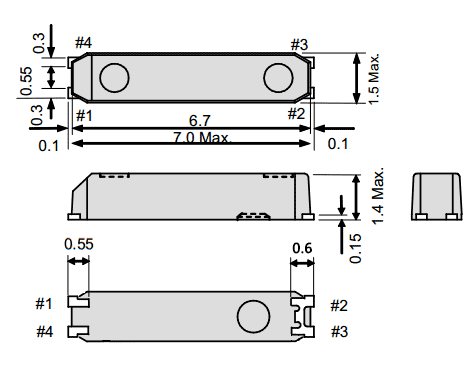

External dimensions



(Unit: mm)
