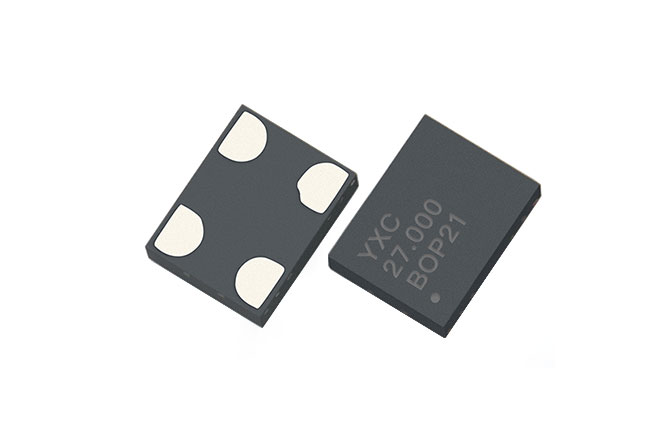

YSO8008MR

Frequency Range: 1-110MHz, LVCMOS output
Dimensions: 7.0*5.0*0.9mm/5.0*3.2*0.75mm/3.2*2.5*0.75mm
Dimensions: 2.5*2.0*0.75mm/2.0*1.6*0.75mm
Package: 1000 pieces/Reel
ROHS STATUS: Compliant
Applications: Ideal for DSC, DVC, DVR, IP CAM, Tablets, e-books.
Sample Download PDF
Parameter Table

Frequency Range 1 to 110 MHz
Frequency Stability ±20, ±25, ±50 (ppm)
Phase Jitter (rms) 1.3 ps
Output Type LVCMOS
Operating Temperature Range -20 to +70, -40 to +85 (°C)
Voltage Supply (V) 1.8, 2.5 to 3.3, 1.8 to 3.3 (sampling)
Package Type (mm²) 2.0x1.6, 2.5x2.0, 3.2x2.5, 5.0x3.2, 7.0x5.0
Features Field programmable



Configurable feature sets

  • Any frequency between 1 and 110 MHz with 6 decimal places of accuracy
  • Stability from ±20 ppm to ±50 ppm
  • Industrial or extended commercial temp.
  • 1.8 V, 2.5 V to 3.3 V, 1.8 V to 3.3 V (sampling) supply voltage:
  • Customize specification for optimal system performance
  • Use same base device for many designs, reducing qualification needs;


Small 2016 & 2520 packages for all frequencies, voltages and stabilities

  • Save more board space without compromising performance and availability


Low power consumption

  • 1.2 µA typical standby current (1.8 V)
  • 3.6 mA typical active current (1.8 V):
  • Extends battery life in portable applications
  • Reduces power consumption for greener systems;


FlexEdge™ configurable drive strength

  • Slower rise/fall time that minimizes EMI from the oscillator
  • Saves cost by driving multiple loads and eliminate additional timing components.
