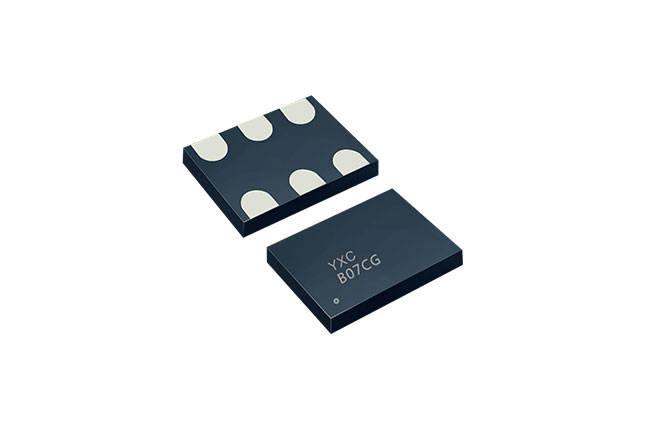

YSO9121MR

Frequency Range: 1-220MHz, LVPECL or LVDS output
Dimensions: 7.0*5.0*0.9mm/5.0*3.2*0.75mm/3.2*2.5*0.75mm
Package: 1000 pieces/Reel
Promise: Lifetime warranty and technical support
ROHS STATUS: Compliant
Sample Download PDF
Parameter Table

Oscillator Type XO-DE
Frequency Range 1 to 220 MHz
Frequency Stability (ppm) ±10, ±20, ±25, ±50
Phase Jitter (rms) 0.6 ps
Output Type LVPECL, LVDS
Operating Temperature Range (°C) -20 to +70, -40 to +85
Voltage Supply (V) 2.5, 3.3, 2.25 to 3.63
Package Type (mm²) 3.2x2.5, 5.0x3.2, 7.0x5.0
Features Field programmable
Availability Production

Features


0.6 ps integrated RMS phase jitter (12 kHz to 20 MHz)

  • Excellent jitter margin for the most stringent applications such as SONET


Excellent frequency stability, as low as ±10 PPM

  • Better timing margin that enhances system stability and robustness
  • Extensive programmability
  • Frequency from 1 to 220 MHz
  • LVPECL and LVDS output signaling types
  • Supply voltage of 2.5V and 3.3V
  • Frequency stability from ±10 PPM to ±50 PPM
    • Customized specifications for optimal system performance
    • Easy availability of any device specification within the operating range


Three industry standard packages

  • 100% drop in replacement for quartz, SAW and overtone oscillators without any design changes
