YSR315S505

Fixed Frequencies: 315MHz

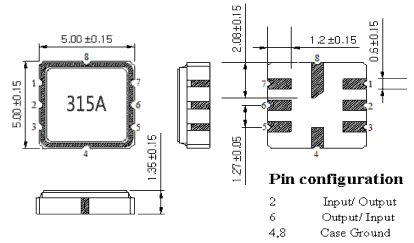

Dimensions: 5.0*5.0mm (5050)
Package: 1000 pieces/Reel
Support: Free samples available
ROHS STATUS: Compliant
Applications: Wireless remote control, Alarm
Consumer electroincs,communications

Sample Download PDF

Parameter Table

Item		Unites	Minimum	Typical	Minimum
Center Frequency		MHz	314.925	315.000	315.075
Insertion Loss		dB		1.5	2.2
Quality Factor	Unload Q		8000	12800
Quality Factor	50Ω Loaded Q		850	2000
Temperature Stability	Turnover Temperature	℃	10	25	40
Temperature Stability	Freq.temp.Coefficient	ppm/ ℃²		0.037
Frequency Aging		ppm/ yr		≤±10
DC. Insulation Resistance		MΩ	1.0
RF Equivalent RLC Model	Motional Resistance R1	Ω		17	26
	Motional Inductance L1	μ H		109.28
	Motional Capacitance C1	fF		2.3357
Transducer Static Capacitance C0		pF		2.7
