YSX221SC
Automotive Electronics
Frequency Range: 12MHz-80MHz
Dimensions: 2.5*2.0mm
Rohs Status: Compliant
Reliability: AEC-Q200
Applications: GPS, Automotive electronics, Industrial electronics
Frequency Range: 12MHz-80MHz
Dimensions: 2.5*2.0mm
Rohs Status: Compliant
Reliability: AEC-Q200
Applications: GPS, Automotive electronics, Industrial electronics
Download PDF
| Item / Type | YSX221SC |
| Standard Frequency | 12 to 80 MHz |
| Vibration Mode | AT Fundamental |
| Load Capacitance | 8pF, 10pF, or specify |
| Frequency Tolerance (at 25 ℃) | ±10 ppm, ± 30 ppm, or specify |
| Frequency Versus Temperature Characteristics | ± 50 ppm, or specify |
| Operating Temperature | - 40 ~ + 125℃, or specify |
| Storage Temperature | - 40 ~ + 125℃, or specify |
| Shunt Capacitance | 3 pF Max. |
| Level of Drive | 100 μW Max. |
| Frequency Aging (at 25 ℃) | ± 2 ppm / year Max. |
Part Number Guide XD252012MKB4SA-*
| Quartz Crystal Resonator | Series | Dimensions (mm) |
Frequency (Hz) |
Load Capacitance (pF) |
Stability (ppm) |
Pin | Material | Operating Temp | - | Remark |
| X | D | 2.5 x 2.0 | 12M | K | B | 4 | S | A | - | * |
Equivalent Series Resistance(ESR)
| Fundamental | |
| 12.0 ~ 15.0MHz | 180 Ω Max. |
| 16.0 ~ 20.0MHz | 150 Ω Max. |
| 21.0 ~30.0 MHz | 100 Ω Max. |
| 31.0~80.0 MHz | 60 Ω Max. |

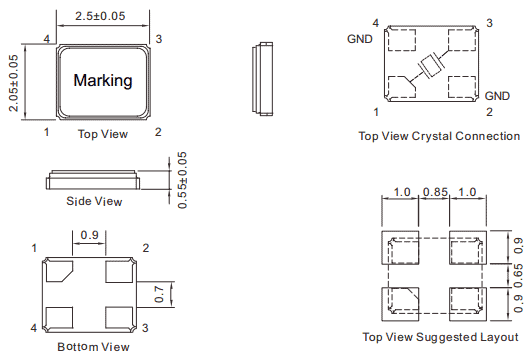

External dimensions
(Unit: mm)
