YSX306GA
Fixed frequency: 32.768KHz
Dimensions: 8.0*3.8mm (8038)
Package: 3000 pieces/Reel
ROHS STATUS: Compliant
Applications: Small communication devices
Dimensions: 8.0*3.8mm (8038)
Package: 3000 pieces/Reel
ROHS STATUS: Compliant
Applications: Small communication devices
Download PDF
| Item / Type | YSX306GA |
| Nominal Frequency Range | 32.768KHz |
| Vibration Mode | +2° X-cut Fundamental |
| Load Capacitance | 12.5pF, or specify |
| Frequency Tolerance (at 25 ℃) | ± 20 ppm , or specify |
| Operating Temperature | - 40 ~ + 85 ℃ |
| Storage Temperature | -55 ~ +125℃ |
| Shunt Capacitance | 2.0pF typical |
| Level of Drive | 1.0 μW Max. |
| Frequency Aging (at 25 ℃) | ± 5 ppm / year Max. |
| Turnover Temperature | 25 ℃ ± 5 ℃ |
| Temperature Coefficient | -0.036 ± 0.006ppm/℃2 |
| Motional Resistance | 50 KΩ Max. |
| Motional Capacitance | 3.0fF typical |
Part Number Guide X803832768KGD4GI
| Quartz Crystal Resonator | Dimensions (mm) |
Frequency (Hz) |
Load Capacitance (pF) |
Stability (ppm) |
Pin | Material | Operating Temp |
| X | 8.0 x 3.8 | 32.768K | G | D | 4 | G | I |

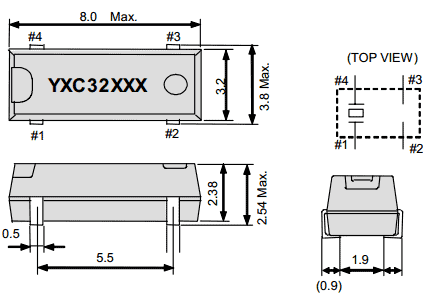

External dimensions
(Unit: mm)
