YSX320GA

Frequency Range：11.0592MHz to 54MHz
External Dimensions: 3.2*2.5mm (3225)
Excellent heat resistance and environmental characteristics
Contains Pb in sealing glass exempted by RoHS directive
Applications in wireless communication ,DSC and USB interface card
Sample Download PDF
Parameter Table

Item / Type YSX320GA
Nominal Frequency Range 11.0592 to 54 MHz
Vibration Mode AT Fundamental
Load Capacitance 12pF, 20pF, or specify
Frequency Tolerance (at 25 ℃) ±10 ppm, ± 20 ppm, or specify
Frequency Versus Temperature Characteristics ± 20 ppm, or specify
Operating Temperature - 20 to + 70 ℃ , - 40 to + 85 ℃, or specify
Storage Temperature -40 to +85 ℃, or specify
Shunt Capacitance 7 pF Max.
Level of Drive 1 to 100 μW (10μW typical)
Frequency Aging (at 25 ℃) ± 3 ppm / year Max.
Insulation Resistance More Than 500MΩ at DC 100V

Part Number Guide             X322512MSB4GC
Quartz Crystal Resonator Dimensions
(mm)		 Frequency
(Hz)		 Load Capacitance
(pF)		 Frequency Stability
(ppm)		 Pin Material Operating Temp
X 3.2 x 2.5 12M S B 4 G C

Equivalent Series Resistance(ESR)

Fundamental
11.0592 to 16 MHz      80 Ω
16 to 20 MHz 60 Ω
20 to 54 MHz 40 Ω

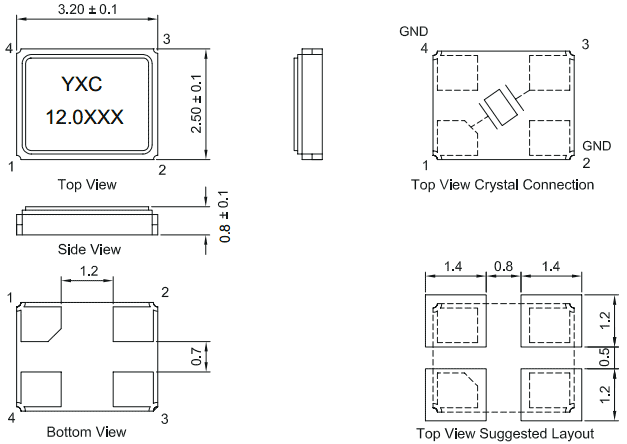

External dimensions



(Unit: mm)
