YSX530SC

Automotive Electronics
Frequency range: 7.6MHz-54MHz
Dimensions: 5.0*3.2mm
Rohs Status: Compliant
Reliability: AEC-Q200
Applications: GPS,Automotive electronics,Industrial electronics
Sample Download PDF
Parameter Table

Item / Type YSX530SC
Standard Frequency 7.6 to 54 MHz
Vibration Mode AT Fundamental
Load Capacitance 18pF, 20pF, or specify
Frequency Tolerance (at 25 ℃) ±10 ppm, ± 30 ppm, or specify
Frequency Versus Temperature Characteristics ± 50 ppm, or specify
Operating Temperature - 40 ~ + 125℃, or specify
Storage Temperature - 40 ~ + 125℃, or specify
Shunt Capacitance 5 pF Max.
Level of Drive 300 μW Max.
Frequency Aging (at 25 ℃) ± 2 ppm / year Max.

Part Number Guide             XB50328MSB2SA-*
Quartz Crystal Resonator Series Dimensions
(mm)		 Frequency
(Hz)		 Load Capacitance
(pF)		 Stability
(ppm)		 Pin Material Operating Temp  -  Remark
X B 5.0 x 3.2 8M S B 2 S A - *

Equivalent Series Resistance(ESR)

undamental
7.6 ~ 11.9MHz 100 Ω Max.
12.0 ~ 13.9MHz 60 Ω Max.
14.0 ~19.9 MHz 50 Ω Max.
20.0~ 54.0 MHz 40 Ω Max.

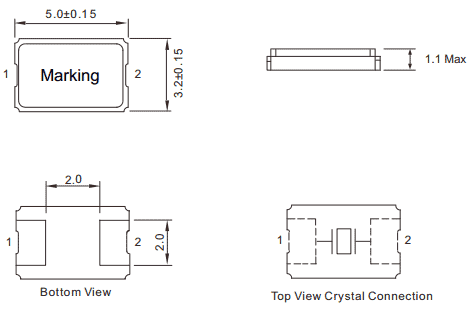

External dimensions



(Unit: mm)
