Item / Type |
YSX531SL |
Nominal Frequency Range |
8 to 54 MHz |
Vibration Mode |
AT Fundamental |
Load Capacitance |
12pF, 20pF, or specify |
Frequency Tolerance (at 25 ℃) |
±10 ppm, ± 20 ppm, or specify |
Frequency Versus Temperature Characteristics |
± 20 ppm, or specify |
Operating Temperature |
- 20 ~ + 70 ℃ , - 40 ~ + 85 ℃, or specify |
Storage Temperature |
-40 ~ +85 ℃, or specify |
Shunt Capacitance |
7 pF Max. |
Level of Drive |
1 ~ 100 μW (100μW typical) |
Frequency Aging (at 25 ℃) |
± 3 ppm / year Max. |
Insulation Resistance |
More Than 500MΩ at DC 100V |
Part Number Guide X503212MSD4SC
Quartz Crystal Resonator |

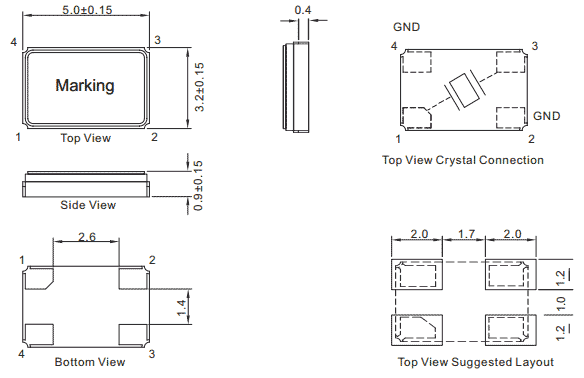

Dimensions |
Frequency |
Load Capacitance |
Stability |
Pin |
Material |
Operating Temp |
X |
5.0 x 3.2 |
12M |
S |
D |
4 |
S |
C |
Fundamental |
|
8 to 12 MHz |
60 Ω ~ 80 Ω |
12 to 25 MHz |
40 Ω ~ 60 Ω |
25 to 54 MHz |
30 Ω ~ 40 Ω |
